Magnetic Tube
Features:

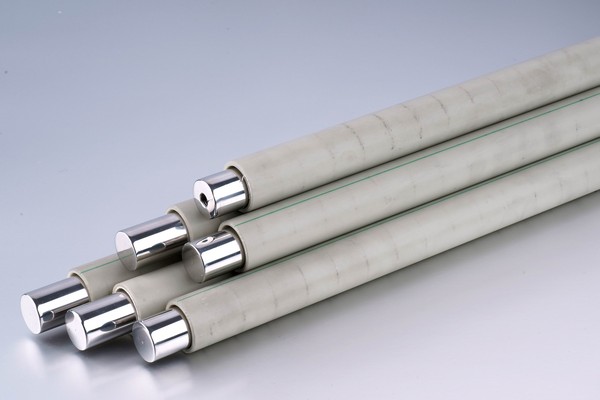

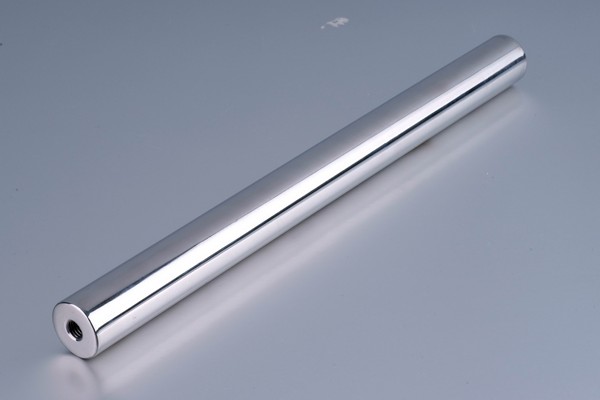

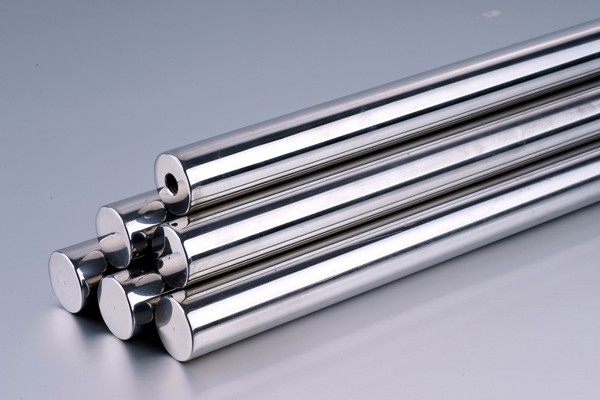

Magnetic tube for magnetic separator , are made from high power NdFeB magnets and stainless tube by well welding and polishing, they are also named magnetic rod, magnetic bar, magnetic filter bar.
| Working Tempereture | 80-350°C |
| Surface Gauss | up to 12500Gs |
| Outer Diameter | up to 100mm(3.9″) |
| Length | as per your requirement |
| Installation Endplugs | various |
| Stainless Steel Tube | SS304 /316/316L |
3 Steps To Get Your Individual Tube Magnet
Tube magnets are completely customized. Your individual requirements need an individual solution.
How to Calculate Magnetic Field?
Finite element models can calculate the strength of a magnetic field. It is quite difficult, but practical we use the value below:
| Dry Powder | 7000-8000 Gauss |
| Wet Slurry | 9000-10000 Gauss |
| Nanometer Particles | over 12000 Gauss |
How to Design the Size of Magnetic Tube?
1. Diameter: Diameters are in a series. The relationship between the diameter and max. gauss value is as below:
| 6000Gs | 7000Gs | 8000Gs | 10000Gs | 11000Gs | 12000Gs | |
| Ø16 | ||||||
| Ø19 | ||||||
| Ø22 | ||||||
| Ø25 | ||||||
| Ø28 | ||||||
| Ø32 | ||||||
| Ø38 | ||||||
| Ø50 | ||||||
| Ø63 | ||||||
| Ø100 | ||||||
* recommended diameter is Ø25mm(1″)
2. Length: Custom and made to any length
How to Design the Installation?
Installation Endplug: Taped holes, threaded studs or plain ends based on your requirements
Threaded Studs
Taped Holes
Plain Ends
How to make sure the material of stainless steel tube is correct?
| SS304 | Widley used in most applications |
| SS316/316L | More corrosion resistance, and are used in food or chemical industries |
Payment: We accept Paypal and T/T
Production: We will start the production when both of us confirm the design.
We own a magnets factory; therefore, we have various types of magnets in stock allowing us to finish production within 3 days. This timeframe is for general orders and we definitely offer competitive prices.
You give us your address, we ship it and you wait for your delivery. We will handle everything. Air and sea transportaiton is avaliable.
Ask for a quote
